Operating Supply Current ::	180 uA	Ib - Input Bias Current ::	80 nA
Mounting Style ::	Through Hole	Minimum Operating Temperature ::	- 25 C
SR - Slew Rate ::	0.5 V/us	Supply Voltage - Max ::	32 V
Package / Case ::	CDIP-14	Maximum Operating Temperature ::	+ 85 C
Supply Voltage - Min ::	3 V	Packaging ::	Tube
Output Current per Channel ::	20 mA	Product Category ::	Operational Amplifiers - Op Amps
Series ::	LM224-N	GBP - Gain Bandwidth Product ::	1 MHz
Number of Channels ::	4 Channel	Vos - Input Offset Voltage ::	5 mV
Manufacturer ::	Texas instruments	Shutdown ::	No Shutdown
CMRR - Common Mode Rejection Ratio ::	70 dB to 85 dB

Operating Supply Current ::	180 uA
Ib - Input Bias Current ::	80 nA
Mounting Style ::	Through Hole
Minimum Operating Temperature ::	- 25 C
SR - Slew Rate ::	0.5 V/us
Supply Voltage - Max ::	32 V
Package / Case ::	CDIP-14
Maximum Operating Temperature ::	+ 85 C
Supply Voltage - Min ::	3 V
Packaging ::	Tube
Output Current per Channel ::	20 mA
Product Category ::	Operational Amplifiers - Op Amps
Series ::	LM224-N
GBP - Gain Bandwidth Product ::	1 MHz
Number of Channels ::	4 Channel
Vos - Input Offset Voltage ::	5 mV
Manufacturer ::	Texas instruments
Shutdown ::	No Shutdown
CMRR - Common Mode Rejection Ratio ::	70 dB to 85 dB

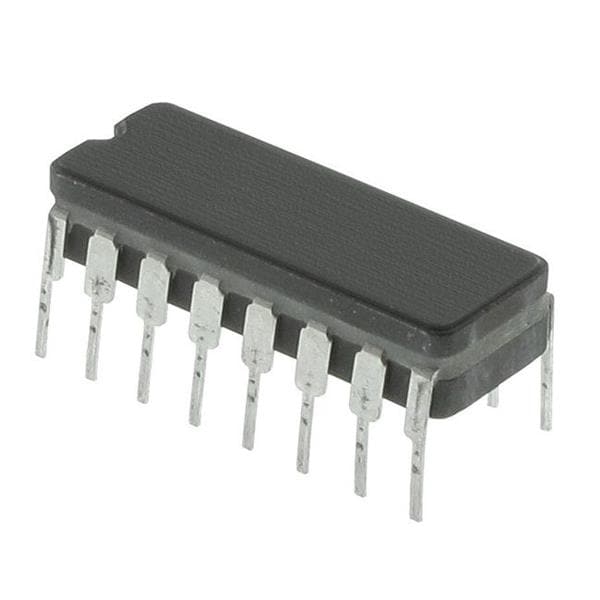

LM224J

Die LM224J, von Texas Instruments, sind Operational Amplifiers - Op Amps. Was wir anbieten haben einen wettbewerbsfähigen Preis auf dem Weltmarkt, die in Original- und neuen Teilen sind.Wenn Sie mehr über die Produkte erfahren oder einen niedrigeren Preis verlangen möchten, kontaktieren Sie uns bitte über den Online-Chat oder senden Sie uns ein Angebot!
